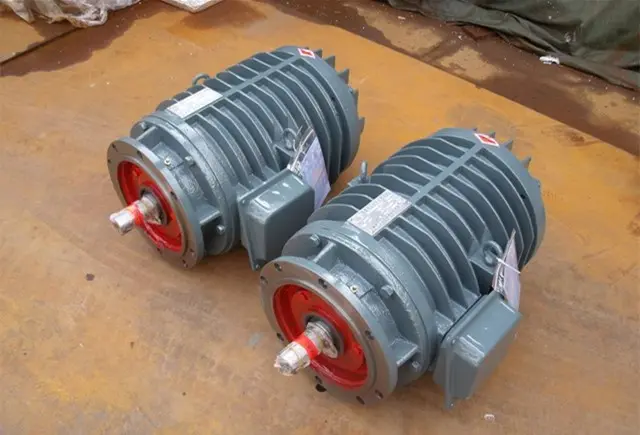

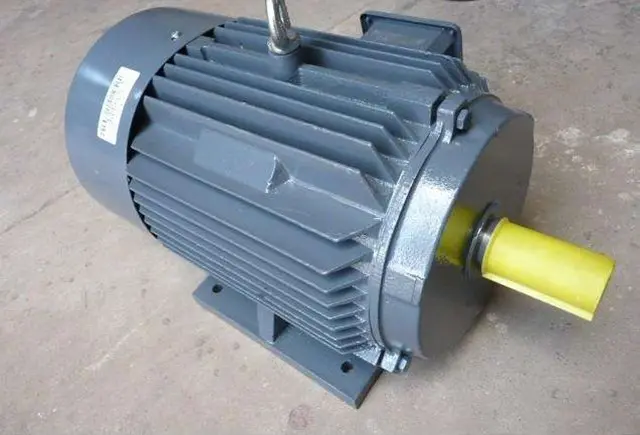

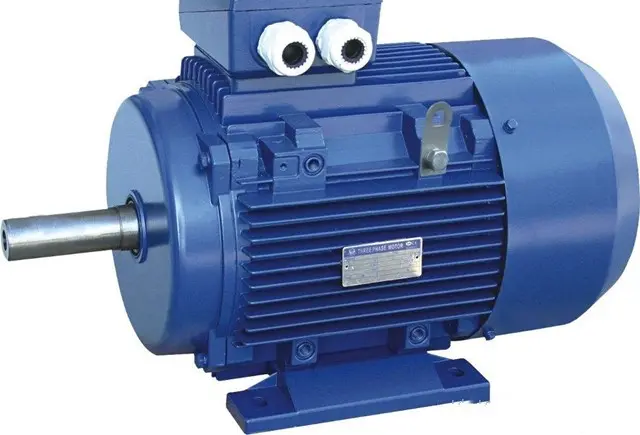

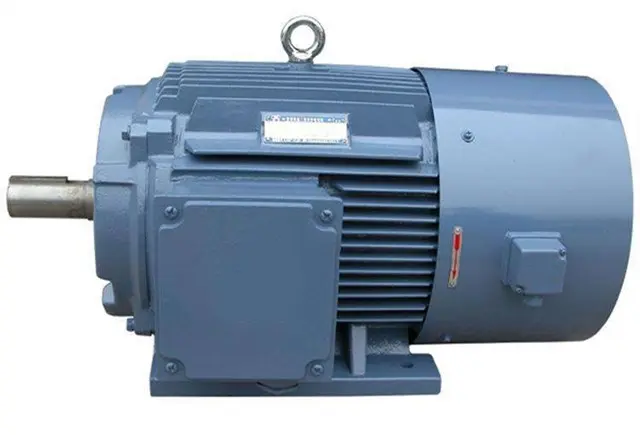

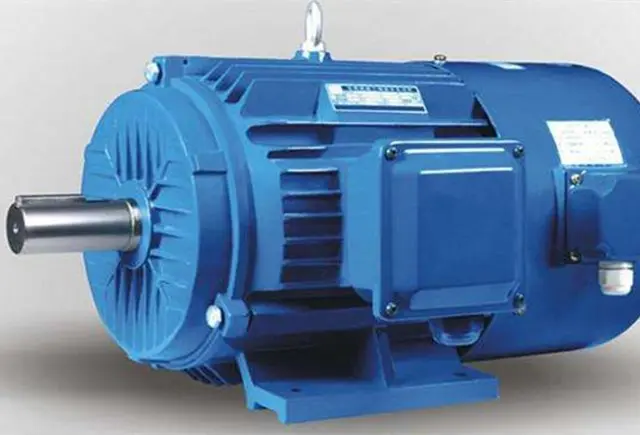

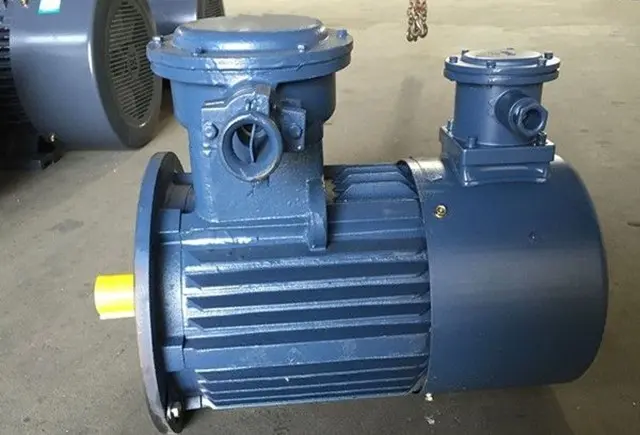

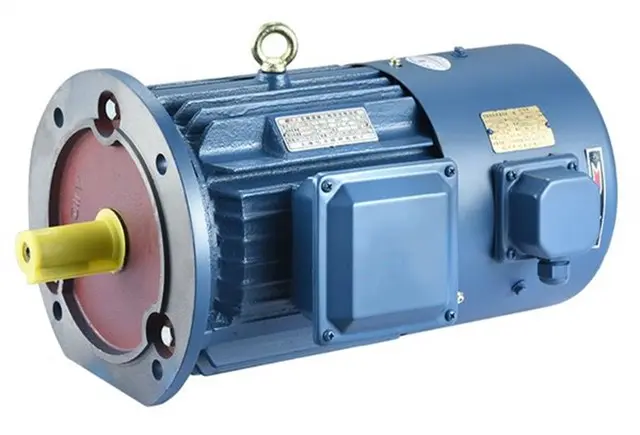

YPT series Frequency Conversion Motor is a new product which absorbs the advantages of motor at home and abroad. SKE is YPT motor supplier.
It is applied to the condition that belt conveyor speed needs regulation.
① Good frequency modulation performance, energy saving, good starting torque performance, low noise, small vibration, safe and reliable operation, beautiful appearance;
② Protection level of motor shell is up to IP55。
③ Strong overload capacity. Able to withstand 160% overload of rated torque for 1 minute.
④ Good low speed performance. At low speed, the torque is smooth without creeping.
⑤ Wide range of motor speed regulation: 3—60HZ，3—10HZ，others。
① Temperature：The ambient air temperature varies with seasons, with a maximum of + 40 ℃ and a minimum of - 15 ℃;
② Altitude：Not more than 1000M;
③ Humidity：The monthly average maximum relative humidity of the wettest month is 90%, and the monthly average minimum temperature is not higher than 25 ℃;
④ Working：S1—Continuous working system;
⑤ Rated voltage：220V，230V，240V，380V，400V，415V，660V，690V，720V;
| YPT Frequency Conversion Motor Data | |||||||||
| Type | Rating output kw |
Rating speed r/min |
Rating current （380V）A |
Rated Effi ％ |
Power factor cosφ |
Rated torque N·m |
Pull out torque | Inertia moverment kg·㎡ |
Weight kg |
| Synchronous speed 1500r/min （4p） | |||||||||
| YPT 801-4 | 0.55 | 1390 | 1.5 | 72.5 | 0.75 | 3.8 | 2.2 | 0.0014 | 17 |
| YPT 802-4 | 0.75 | 1390 | 2 | 74.5 | 0.76 | 5.1 | 2.2 | 0.0016 | 18 |
| YPT 90S-4 | 1.1 | 1400 | 2.7 | 78.0 | 0.78 | 7.5 | 2.2 | 0.0024 | 23 |
| YPT 90L-4 | 1.5 | 1400 | 3.7 | 79.0 | 0.80 | 10.2 | 2.2 | 0.0033 | 27 |
| YPT 100L1-4 | 2.2 | 1430 | 5 | 81.0 | 0.81 | 14.7 | 2.2 | 0.006 | 35 |
| YPT 100L2-4 | 3 | 1430 | 6.8 | 82.5 | 0.81 | 20.0 | 2.2 | 0.008 | 38 |
| YPT 112M-4 | 4 | 1440 | 8.8 | 84.5 | 0.81 | 26.5 | 2.2 | 0.013 | 49 |
| YPT 132S-4 | 5.5 | 1440 | 11.6 | 85.5 | 0.83 | 36.5 | 2.2 | 0.028 | 67 |
| YPT 132M-4 | 7.5 | 1440 | 15.4 | 87.0 | 0.85 | 49.7 | 2.2 | 0.037 | 80 |
| YPT 160M-4 | 11 | 1460 | 22.6 | 88.0 | 0.84 | 71.9 | 2.2 | 0.084 | 124 |
| YPT 160L-4 | 15 | 1460 | 30.3 | 88.5 | 0.86 | 98.1 | 2.2 | 0.11 | 147 |
| YPT 180M-4 | 18.5 | 1470 | 35.9 | 91.0 | 0.87 | 120.1 | 2.2 | 0.155 | 173 |
| YPT 180L-4 | 22 | 1470 | 42.5 | 91.5 | 0.87 | 142.9 | 2.2 | 0.17 | 197 |
| YPT 200L-4 | 30 | 1470 | 56.8 | 92.2 | 0.87 | 194.9 | 2.2 | 0.28 | 255 |
| YPT 225S-4 | 37 | 1480 | 69.8 | 91.8 | 0.87 | 238.7 | 2.2 | 0.48 | 305 |
| YPT 225M-4 | 45 | 1480 | 84.2 | 92.3 | 0.88 | 290.4 | 2.2 | 0.55 | 333 |
| YPT 250M-4 | 55 | 1480 | 102.5 | 92.3 | 0.88 | 354.9 | 2.2 | 0.69 | 400 |
| YPT 280S-4 | 75 | 1480 | 139.7 | 92.7 | 0.88 | 483.9 | 2.2 | 1.3 | 560 |
| YPT 280M-4 | 90 | 1480 | 164.3 | 93.5 | 0.89 | 580.7 | 2.2 | 1.6 | 660 |
| YPT 315S-4 | 110 | 1480 | 201 | 93.5 | 0.89 | 709.8 | 2.2 | 3.1 | 1000 |
| YPT 315M-4 | 132 | 1490 | 240 | 94.0 | 0.89 | 846.0 | 2.2 | 3.5 | 1100 |
| YPT 315L1-4 | 160 | 1490 | 283 | 94.5 | 0.89 | 1025.5 | 2.2 | 4.1 | 1140 |
| YPT 315L2-4 | 200 | 1490 | 362 | 94.5 | 0.89 | 1281.8 | 2.2 | 4.9 | 1220 |
| YPT 355S1-4 | 185 | 1480 | 338 | 94.5 | 0.88 | 1193.7 | 2.2 | 6.8 | 1695 |
| YPT 355S2-4 | 200 | 1480 | 365 | 94.5 | 0.88 | 1290.5 | 2.2 | 7 | 1738 |
| YPT 355M1-4 | 220 | 1480 | 400 | 95.0 | 0.88 | 1419.5 | 2.2 | 8 | 1820 |
| YPT 355M2-4 | 250 | 1480 | 454 | 95.0 | 0.88 | 1613.1 | 2.2 | 8.2 | 1890 |
| YPT 355L1-4 | 280 | 1480 | 501 | 95.5 | 0.89 | 1806.7 | 2.2 | 8 | 2095 |
| YPT 355L2-4 | 315 | 1480 | 563 | 95.6 | 0.90 | 2032.0 | 2.2 | 9.1 | 2180 |
| YPT variable frequency adjustable belt conveyor motor technical parameters table | |||||||||
| Type | Rating output kw |
Rating speed r/min |
Rating current （380V）A |
Rated Effi ％ |
Power factor cosφ |
Rated torque N·m |
Pull out torque | Inertia moverment kg·㎡ |
Weight kg |
| Synchronous speed 1000r/min （6p） | |||||||||
| YPT 90S-6 | 0.75 | 910 | 2.25 | 72.5 | 0.70 | 7.9 | 2.1 | 0.0034 | 25 |
| YPT 90L-6 | 1.1 | 910 | 3.15 | 72.5 | 0.71 | 11.5 | 2.1 | 0.0046 | 27 |
| YPT 100L-6 | 1.5 | 940 | 3.97 | 77.5 | 0.73 | 15.23 | 2.1 | 0.008 | 32 |
| YPT 112M-6 | 2.2 | 940 | 5.16 | 80.5 | 0.72 | 22.3 | 2.1 | 0.014 | 45 |
| YPT 132S-6 | 3 | 960 | 7.23 | 83.0 | 0.76 | 29.8 | 2.1 | 0.032 | 65 |
| YPT 132M1-6 | 4 | 960 | 9.4 | 84.0 | 0.76 | 39.8 | 2.1 | 0.041 | 75 |
| YPT 132M2-6 | 5.5 | 960 | 12.6 | 85.3 | 0.78 | 54.7 | 2.1 | 0.055 | 84 |
| YPT 160M-6 | 7.5 | 970 | 17 | 86.0 | 0.76 | 73.8 | 2.1 | 0.094 | 121 |
| YPT 160L-6 | 11 | 970 | 24.6 | 87.0 | 0.76 | 108.3 | 2.1 | 0.13 | 146 |
| YPT 180L-6 | 15 | 970 | 31.4 | 89.5 | 0.78 | 147.7 | 2.1 | 0.22 | 186 |
| YPT 200L1-6 | 18.5 | 970 | 37.7 | 89.8 | 0.83 | 182.1 | 2.1 | 0.33 | 235 |
| YPT 200L-6 | 22 | 970 | 44.6 | 90.2 | 0.83 | 216.6 | 2.1 | 0.36 | 260 |
| YPT 225M-6 | 30 | 980 | 59.5 | 90.2 | 0.85 | 292.2 | 2.1 | 0.61 | 302 |
| YPT 250M-6 | 37 | 980 | 72 | 90.8 | 0.86 | 360.5 | 2.1 | 0.94 | 400 |
| YPT 280S-6 | 45 | 980 | 85.4 | 92.0 | 0.86 | 438.5 | 2.1 | 1.5 | 533 |
| YPT 280M-6 | 55 | 980 | 104.9 | 92.0 | 0.88 | 536.0 | 2.1 | 1.8 | 590 |
| YPT 315S-6 | 75 | 990 | 141 | 92.8 | 0.87 | 723.5 | 2.1 | 3.8 | 990 |
| YPT 315M-6 | 90 | 990 | 168 | 93.0 | 0.87 | 868.2 | 2.1 | 4.3 | 1015 |
| YPT 315L1-6 | 110 | 990 | 205 | 93.5 | 0.87 | 1061.1 | 2.1 | 5.3 | 1110 |
| YPT 315L2-6 | 132 | 980 | 246 | 93.8 | 0.87 | 1273.3 | 2.1 | 6.3 | 1190 |
| YPT 355S-6 | 160 | 980 | 297 | 94.0 | 0.87 | 1559.1 | 2.1 | 12.3 | 1690 |
| YPT 355M1-6 | 185 | 980 | 343 | 94.0 | 0.87 | 1802.8 | 2.1 | 12.9 | 1740 |
| YPT 355M2-6 | 200 | 980 | 370 | 94.5 | 0.87 | 1949.0 | 2.1 | 14.6 | 1820 |
| YPT 355L1-6 | 220 | 980 | 406 | 94.5 | 0.87 | 2413.8 | 2.1 | 15.8 | 1910 |
| YPT 355L2-6 | 250 | 980 | 462 | 94.5 | 0.87 | 2436.2 | 2.1 | 17.5 | 2120 |
