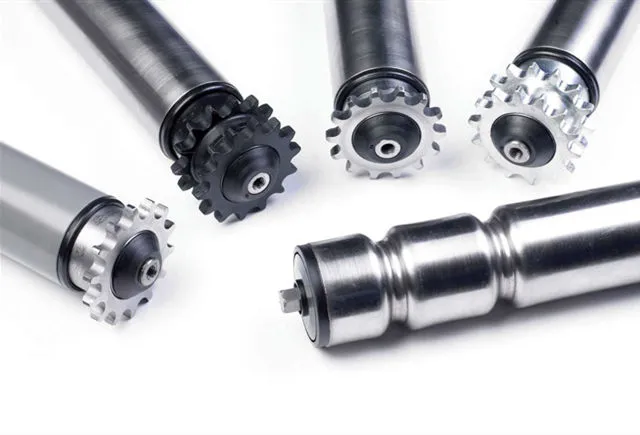

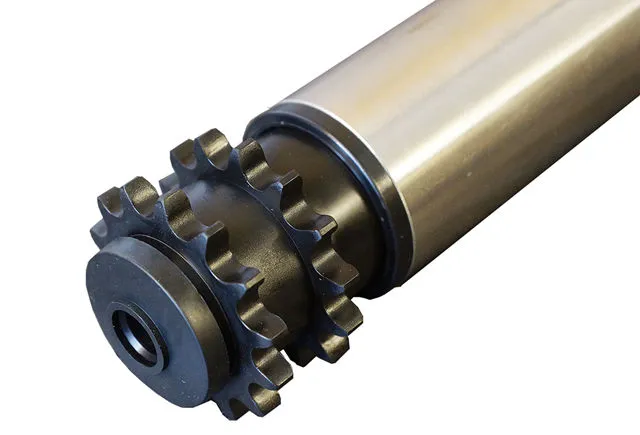

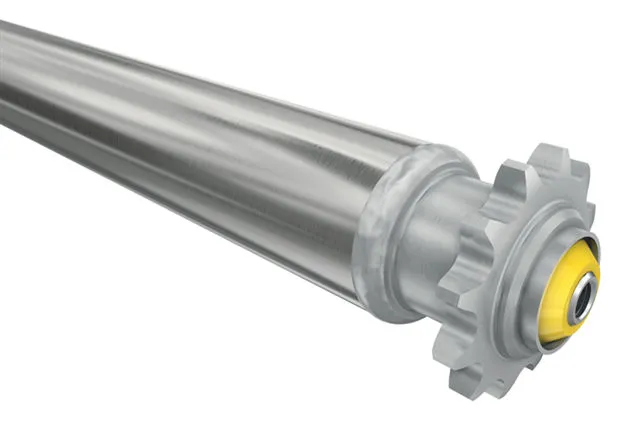

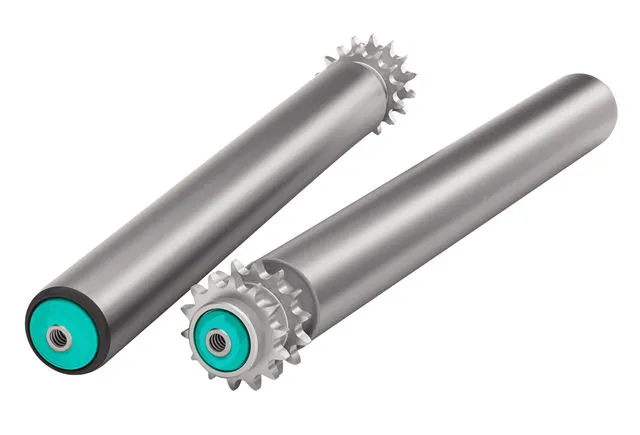

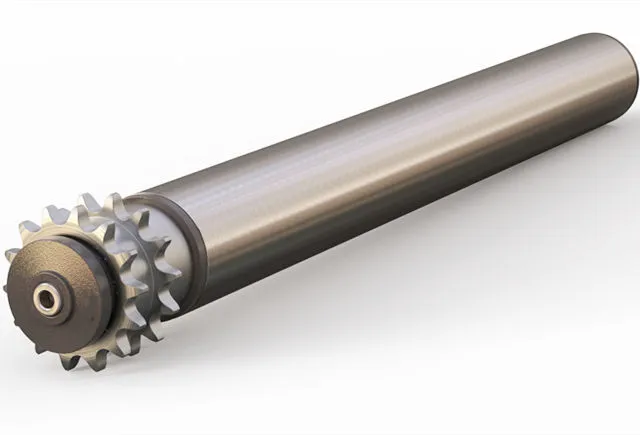

Sprocketed conveyor rollers are ideally suited to either pallet or heavy duty conveyors. The rollers can be supplied with single sprockets for tangential drives or double sprockets for roller to roller drives.
The sprocketed rollers have teeth that engage with the drive chain to prevent the chain from slipping, even in dirty or oily conditions. These conveyor rollers are installed in roller conveyors to support and move items on the conveyor. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads.
Sprocketed Conveyor Rollers | ||
Tube Size | Spindle Option | Capacity* |
50mmx2mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
60mmx2mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
80mmx2mm | ø5/8″, ø20mm, 11mm & 9/16″ Hex | 400kg |
88.9mmx2.9mm | ø5/8″, ø20mm, 11mm & 9/16″ Hex | 400kg |
2″x10 SWG | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
2 1/2″x10 SWG | ø5/8″, ø3/4″, 11mm, 9/16″ & 17mm Hex | 300kg |
3″x10 SWG | ø5/8″, ø3/4″, ø20mm, 11mm & 9/16″ Hex | 400kg |
Bearing Options | Non-Precision | |
Semi-Precision | ||
Precision | ||
Cover Options | Rollers are supplied either bright zinc plated or standard self colour finish. |
