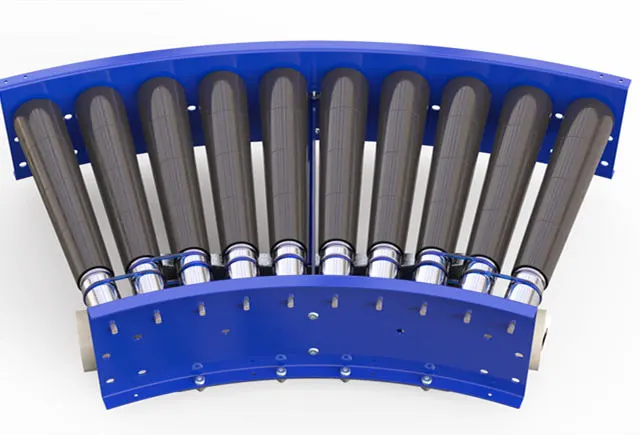

Tapered rollers are commonly used in 45, 90 or 180 degree conveyor curves. The most common size is 2-1/2 on the large end tapering down to 1-5/8 on the small end.
Tapered rollers are commonly used in 45, 90 or 180 degree conveyor curves. The most common size is 2-1/2 on the large end tapering down to 1-5/8 on the small end. Although that size is most common, tapered rollers can come in just about any custom size you need.

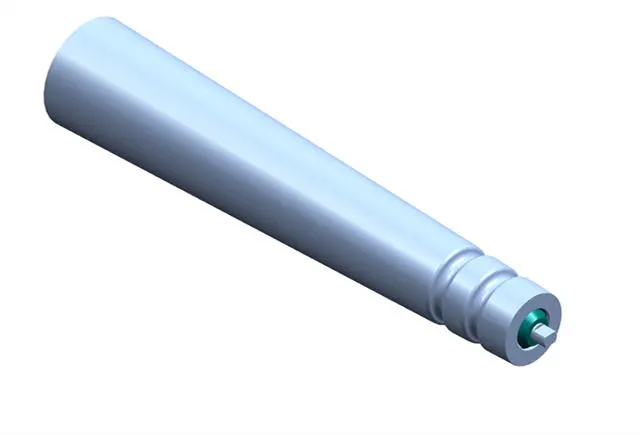

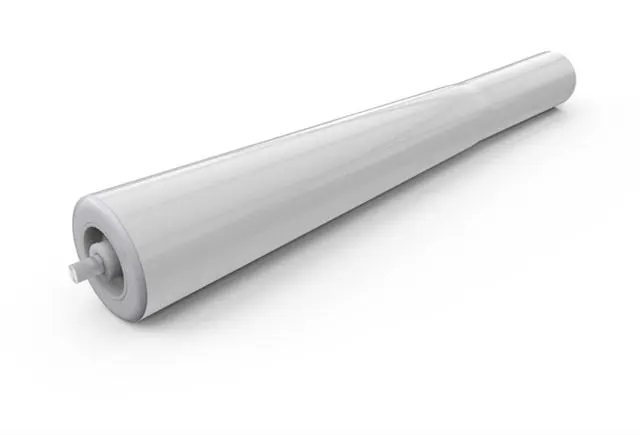

Tapered Conveyor Rollers | ||
Tube Size | Spindle Option | Capacity* |
50mmx1.5mm | ø10mm, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 35kg |
1 1/2″ x 16 SWG | ø10mm, ø12mm, ø15mm, 8mm & 11mm Hex | 35kg |
Inside Radius | 800mm to 1000mm | |
Bearing Options | Non-Precision | |
Semi-Precision | ||
Precision | ||
Cover Options | Mild Steel (Standard) | |
Galvanized | ||
Stainless | ||
Heat Treated | ||
Polyurethane | ||
Ultrex | ||
Chrome |
