GTD Belt Type Bucket Elevator

Belt bucket elevator uses EP/NN belt or steel cord belt to lift the buckets. The lifting efficiency can reach 788m³/h. The lifting height can reach up to 80m (100, when using steel cord belt).

Send Email Send A Request

Obtained Certificates: EAC Certification, CE Certificate, ISO 9001, ISO 14001, ISO 45001,

Application
Features
Datasheet
Manufacturing
Gallery

APPLICATION

Belt type bucket elevator is a series of hoppers evenly fixed on the endless belt. It is a continuous conveying machine for vertical lifting of materials. It is suitable for lifting from low to high. Belt bucket elevator is widely used in the lifting of bulk materials in building materials, metallurgy, chemical industry, grain and other industries. It is widely used in handling materials like grains, fertilizers, potash, salt, cement, sand and gravel and other materials.

FEATURES

The belt bucket elevator can lift various powdery, granular and blocky materials (≤30mm), and the material temperature is ≤120℃.

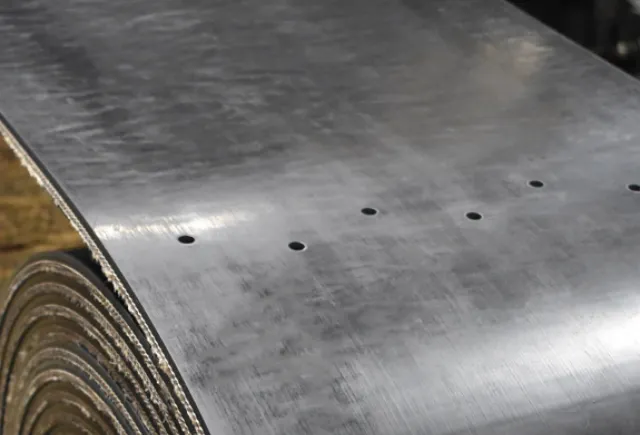

Due to the high strength of the wire rope belt and stable operation, the lifting height of the belt bucket elevator can reach 80m.
Large lifting capacity. The belt bucket elevator can lift 32-788m3/h.
Long-term practice has proved that the trouble-free operation time of this elevator can reach 30,000 hours.
Compared with general elevators, the belt bucket elevator conveyor saves more than 30% of energy consumption.
There are fewer wearing parts, and the maintenance cost is reduced by more than 80% compared with general bucket elevators.
Simple structure, low manufacturing cost and low investment.
Good sealing and no environmental pollution.
Compared with other types of bucket elevators of the same capacity, the belt bucket elevator conveyor has a smaller mechanical size.

DATASHEET

Model	Capacity (m³/h)		Bucket volume (L)		Pitch of Bucket (mm)	Bucket speed (m/s)	Max. Lifting height (m)
Model	Sh	Zh	Sh	Zh	Pitch of Bucket (mm)	Bucket speed (m/s)	Max. Lifting height (m)
GTD160	32	24	2. 6	1. 9	260	1. 2	80 (100)
GTD200	45	31	4.1	2. 9	300	1. 2
GTD250	72	51	6. 5	4. 6	325	1. 3
GTD315	101	74	10	7.4	360	1. 3
GTD400	158	118	16	12	420	1. 5
GTD500	220	167	25	19	460	1. 5
GTD630	348	253	40	29	520	1. 6
GTD800	492	361	64	47	580	1. 6
GTD1000	788	571	102	74	650	1. 8

Manufacturing

60000
Factory (㎡)
100+
Workers
20+
R&D Engineers
20+
Welders Certified
160+
Marketing Areas
1000+
Projects

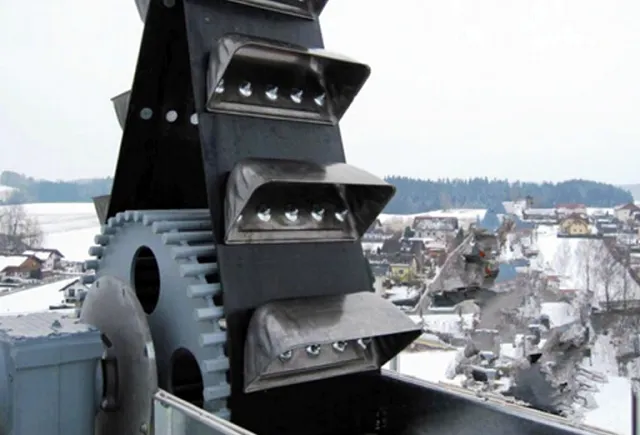

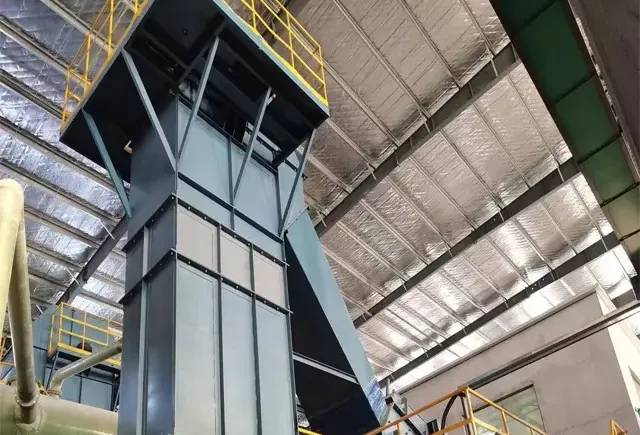

EQUIPMENT GALLERY

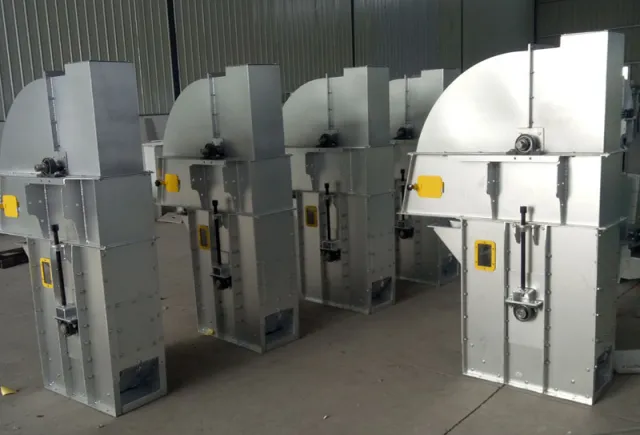

GTD Belt Type Bucket Elevator
