Stacker, Ship Loader, Eco Hopper, Reclaimer, Truck Unloader, Belt Conveyor Manufacturer

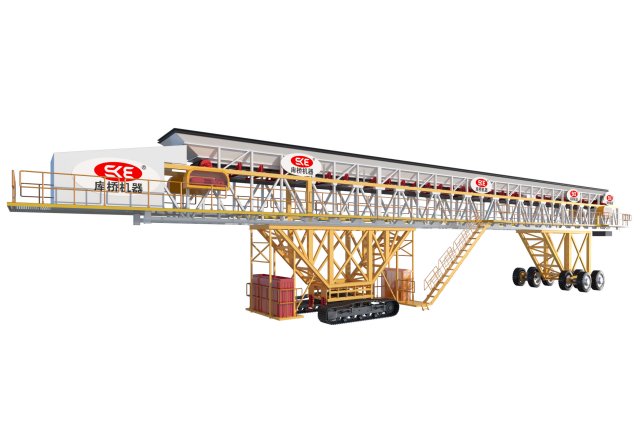

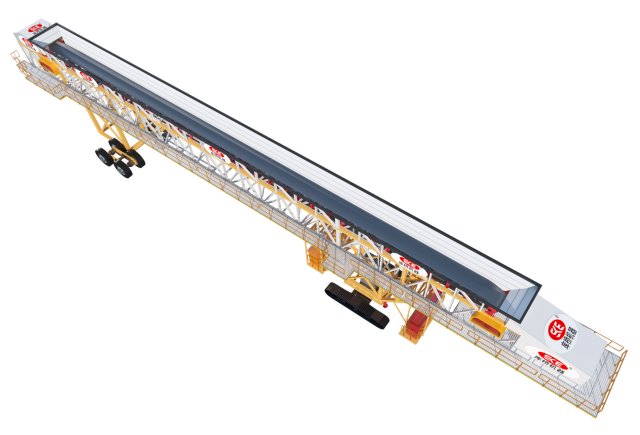

KHC mobile horizontal bridge conveyor is often working with radial telescopic stacker to build large scale heap leaching plant. The conveying capacity can reach up 4500t/h.
KHC mobile bridge conveyors are used in the heap leach stacking circuit and allow the stacking conveyor to be retracted in a continuous movement without interruption to the stacking process. They are widely used in:
1. Heavy-duty truss structure: Utilizes a truss structure design, offering high structural strength and excellent stability.
2. Full-length guide trough: Equipped with radial receiving hoppers throughout the conveyor's entire length, increasing the material receiving range; side skirts effectively prevent spillage.
3. Maintenance walkway: Facilitates personnel maintenance and component replacement, improving work efficiency, reducing labor intensity, enhancing safety, and facilitating easy assembly and disassembly.
4. Traversing device: Capable of forward and backward movement, turning, and other mobility functions, offering high maneuverability.
5. Diesel generator set: Provides higher power supply reliability, stable power output, and a wide power range.
6. Protection switches: Real-time monitoring and protection of the conveyor, improving production efficiency and safety.
7. Electrical control system: PLC control + wireless remote control operation.
| Model | Length | Belt Width | Capacity (@1.6t/m³) |
| KHC1030 | 30m（98ft.4”） | 1000mm（39”） | 1150t/h |
| KHC1045 | 45m（147ft.6”） | 1000mm（39”） | 1150t/h |
| KHC1230 | 30m（98ft.4”） | 1200mm（47”） | 1600t/h |
| KHC1245 | 45m（147ft.6”） | 1200mm（47”） | 1600t/h |
| KHC1430 | 30m（98ft.4”） | 1400m（55”） | 2300t/h |
| KHC1445 | 45m（147ft.6”） | 1400m（55”） | 2300t/h |
| For other capacity and lengths, we can provide customized services. | |||
