KP Pipe Conveyor System

The KP Pipe Conveyor Systems is also known as the pipe belt conveyor system. SKE is a pipe belt conveyor manufacturer in China. We can make bulk materials conveyed in an enclosed and environment friendly conditions come true and protect from leakage, spilling, dust, mixed debris, rain, and snow.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

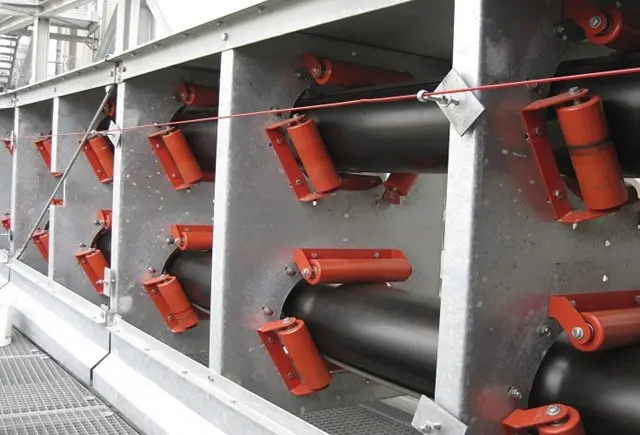

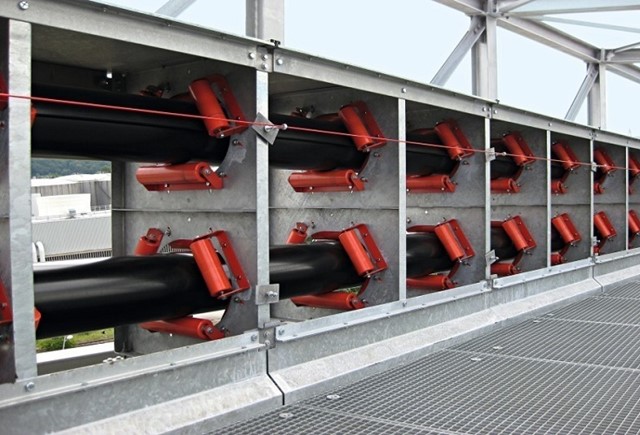

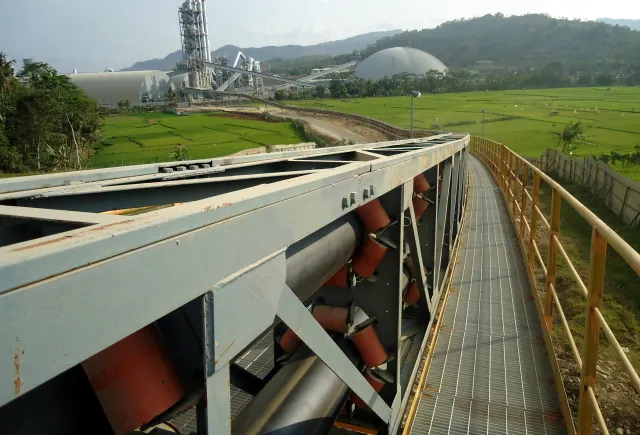

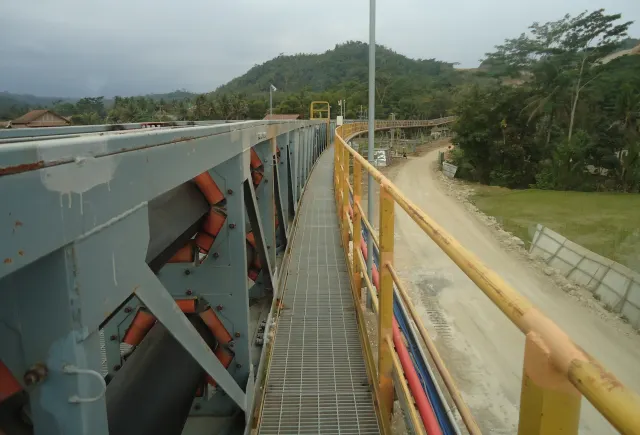

The KP Pipe Belt Conveyor is a special type of conveyors developed on the basis of the through belt conveyor. We usually use six idlers to form a regular polygon idler group to force the conveyor belt to form a circle.

Industries: It is able to be widely used in thermal power plant, building materials, chemical industry, metallurgy, mining, coal, ports, grain and other industries.

Materials: Coal, coke, coal ash, metal ores (gold, silver, copper, iron, lead, zinc, etc.), ore powder, sinter ore, non-metallic ores (marble, basalt, limestone, granite, potash, trona, salt, phosphate, etc), alternative fuel, slag, gravel aggregate, fertilizer, grain (soybean, corn, wheat) ,etc.

Methods: The pipe belt conveyor can be divided into unidirectional and bidirectional conveyors, of which the unidirectional material transportation can be subdivided into two types of one-way pipe forming and two-way pipe forming.

Advantages

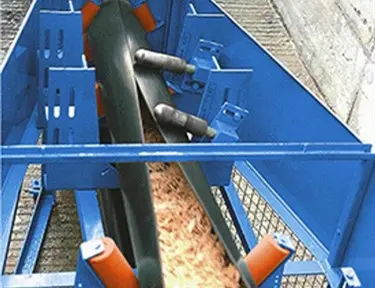

  • Conveying bulk material in a closed working condition

    During the conveying procedure, there are not any spilling, dust flying, material leaking. The pipe conveyor can prevent materials outside the pipe belt from entering the pipe. It is very friendly to the environment and workers.

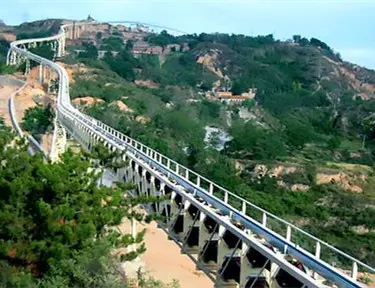

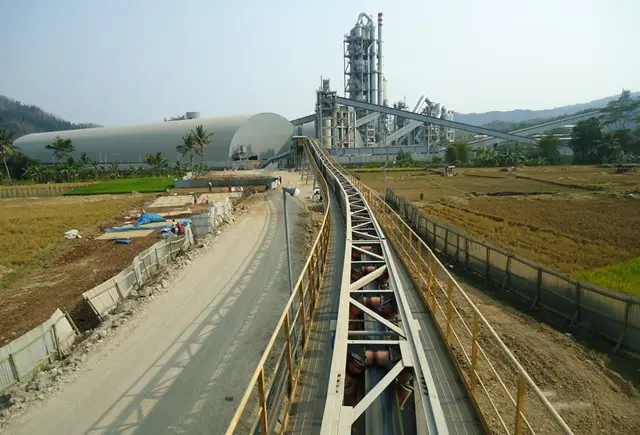

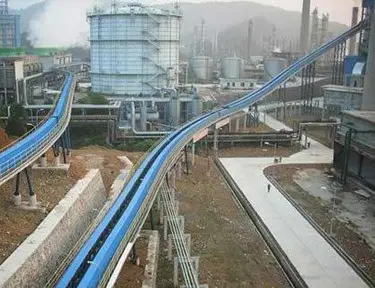

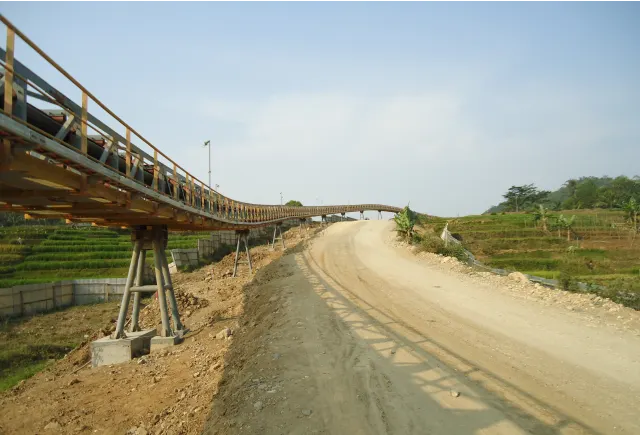

  • Long distance conveying and large curvilinear bending

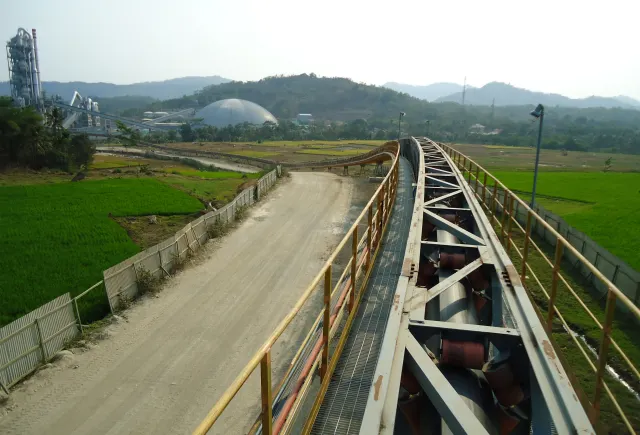

    It has a round pipe structure,  and it can bypass various obstacles and facilities and doesn't need any investment of turning stations. With a small radius of curvature, the space can be flexibly arranged, and it can be bent at 90 °.

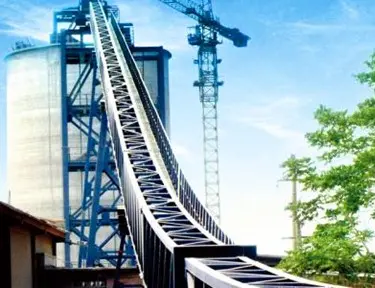

  • It is able to move material in a large angle easily

    The encapsulation of the material in the conveyor belt increases the friction between the material and the inner surface of the conveyor belt. Due to this, it can increase the conveying inclination of the belt conveyor. It's very useful for raw material moving of power plant.

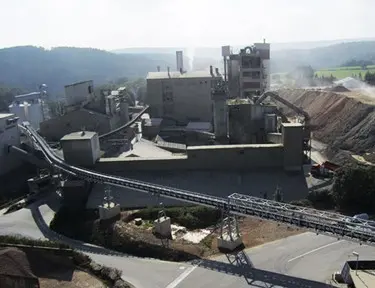

  • No deviation of round tube pipe belt conveyor

    Deviation phenomenon is more common in ordinary belt conveyors. Due to its structural, the round tube pipe belt conveyor will not cause the belt to drift, which can reduce maintenance costs. However, it is allowed to produce a certain twist in the round pipe belt conveyor.

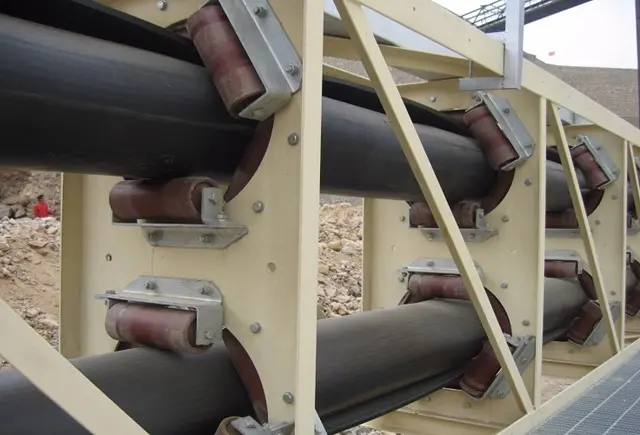

  • Transporting bulk materials in both directions

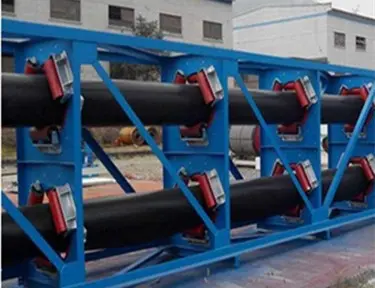

    On the conveying line, the round pipe belt conveyor can convey material unidirectionally and bidirectionally under special process requirements. The unidirectionally conveying method can be subdivided into one-way and two-way forming tube pipe belt conveyors.

  • Meet the needs of material conveying in different scenarios

    Pipe belt conveyor systems are able to convey various of materials. They can be used in coal, mineral ore stone, grains, cement, pulp, and concrete mining and processing plant to convey all kinds of raw materials and final products. You can contact us for more applications.

Tech Datasheet
Specifications of KP pipe conveyor system
Pipe diameter(dp/mm) Belt Width(b/mm)  Belt pipe conveyor systems belt speed v/(m/s)
0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0 4.5 5.0
100 430 17.0 21.2 26.5 33.9
150 600 38.0 47.5 59.4 76.0 95.0 118.8
200 750 66.5 83.1 103.9 133.0 166.2 207.8
250 1000 117.9 147.4 184.3 235.8 294.8 368.5 464.3
300 1100 141.1 176.4 211.7 282.2 352.8 441.0 555.7 705.6
350 1300 237.6 297.0 380.2 497.2 594.0 748.4 950.4 1069.2 1188.0
400 1600 388.8 486.0 622.1 777.6 972.0 1224.7 1555.2 1749.6 1944.0
500 1900 558.1 697.6 893.0 1116.2 1395.3 1758.0 2232.4 2511.5 2790.5
600 2250 777.6 972.0 1244.2 1555.2 1944.0 2449.4 3110.4 3499.2 3888.0
700 2550 1008.0 1260.0 1612.8 2016.0 2520.0 3175.2 4032.0 4536.2 5040.2
850 3100 1454.4 1818.0 2327.0 2908.8 3636.0 4580.0 5817.6 6544.8 7272.0
