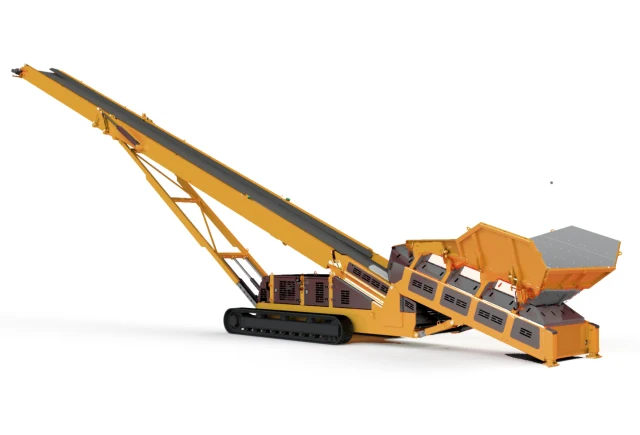

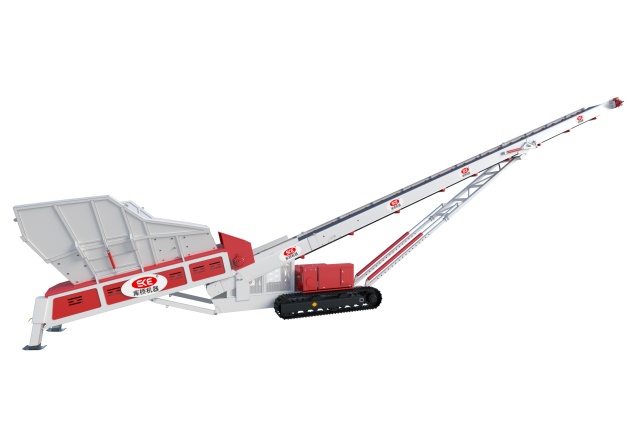

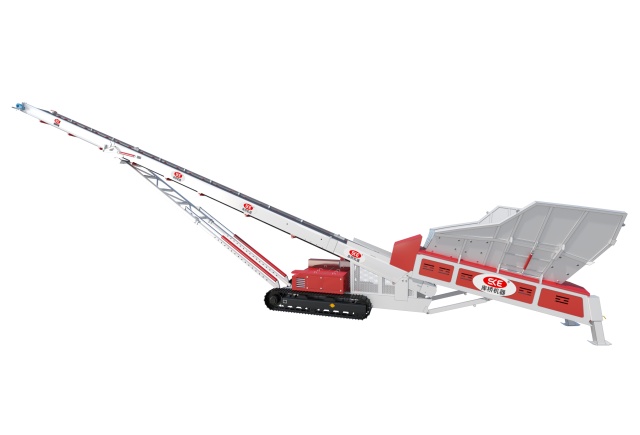

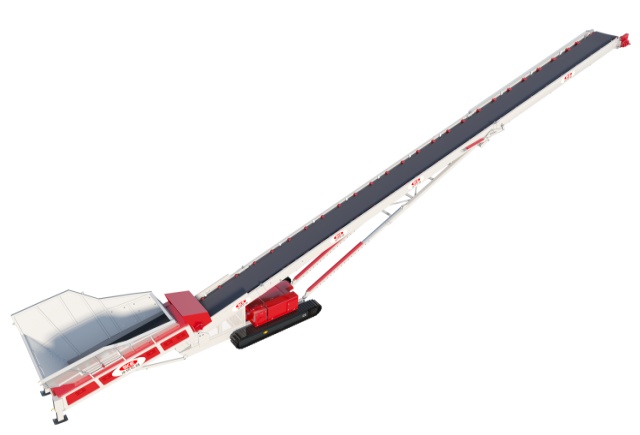

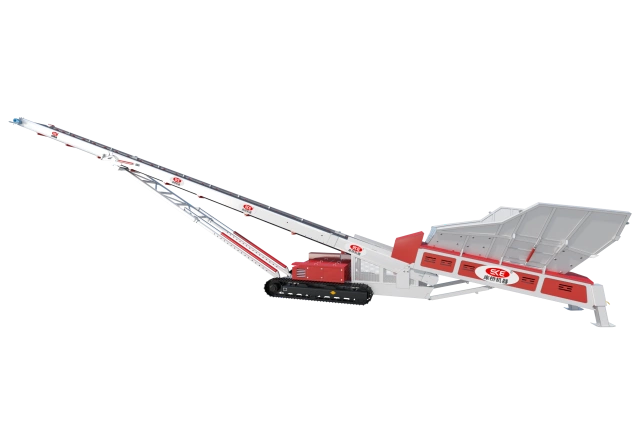

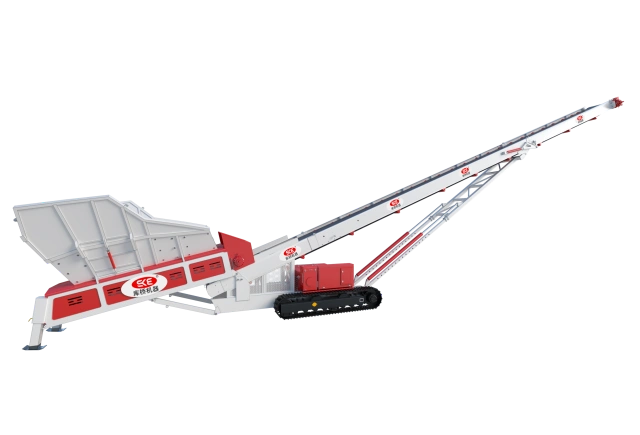

KTL Tracked Low Range Hopper Feeder Conveyor

The KTL Tracked Low Range Hopper Feeder Conveyor Range allows the operator to directly discharge from wheel loaders/ grab cranes and excavators at a significantly lower feed in height compared to standard hopper feeders. The stacking or feeding capacity ranges from 100 t/h to 1500 t/h, and the feeding lump size is up to 300mm.

  • Application
  • Advantage
  • Datasheet
  • Related
  • Gallery
APPLICATION

The Tracked Low Range Hopper Feeder Conveyor allows the operator to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to other hopper feeders thus eliminating double handling of material on site. You can use it in such applications:

  • Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore's (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....
  • Stockpiling / Loading directly from wheel loader, excavator, grab crane etc.
  • Truck and rail wagon loading.
  • Ship and barge loading / unloading.
  • Stockpiling from secondary crushers and screens.
  • Stockpiling crushed stone, sand and gravel, mineral ores.
  • Working as part of a mobile system on short to medium term projects.
  • Fully customized to meet the needs of the application.



ADVANTAGE

1. Low feeder means easy to load directly from wheel loader or excavator.
2. Self powered diesel hydraulic tracked feeder conveyor can be used alone or in conjunction with mobile crushing and screening equipment.
3. Containerised shipping means low cost transport.
4. Range of designs and hopper capacities depending on feeding equipment and production rates on site.
5. Reducing loading shovel movements which reduces operating cost and improves safety.

DATASHEET
Model KTL1214
Length (m) 14 (45.93ft)
Belt Width (mm) 1200 (47.24inch)
Discharging Height (m) 6.3 (20.66ft)
Stockpile Volume (m³) 450 (588yd³)
Stockpile Volume (t) 720
Capacity (t/h) 500
1. The reference density is 1.6t/m³.



Model KTL1218
Length (m) 18 (59.05ft)
Belt Width (mm) 1200 (47.24inch)
Discharging Height (m) 8.1 (26.57ft)
Stockpile Volume (m³) 845 (1105yd³)
Stockpile Volume (t) 1350
Capacity (t/h) 500
1. The reference density is 1.6t/m³.



Model KTL1220
Length (m) 20 (65.61ft)
Belt Width (mm) 1200 (47.24inch)
Discharging Height (m) 9.2 (30.18ft)
Stockpile Volume (m³) 1315 (1719yd³)
Stockpile Volume (t) 2100
Capacity (t/h) 500
1. The reference density is 1.6t/m³.

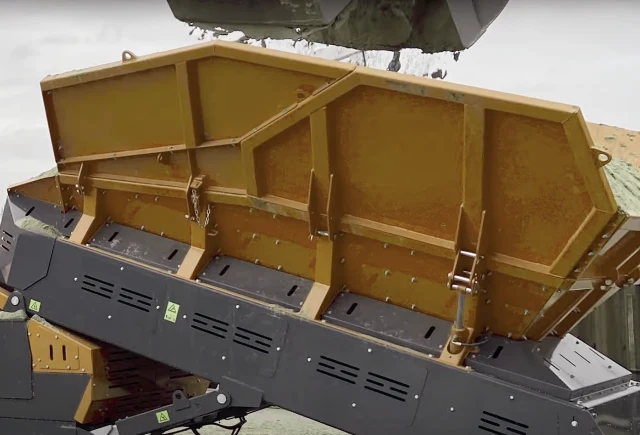

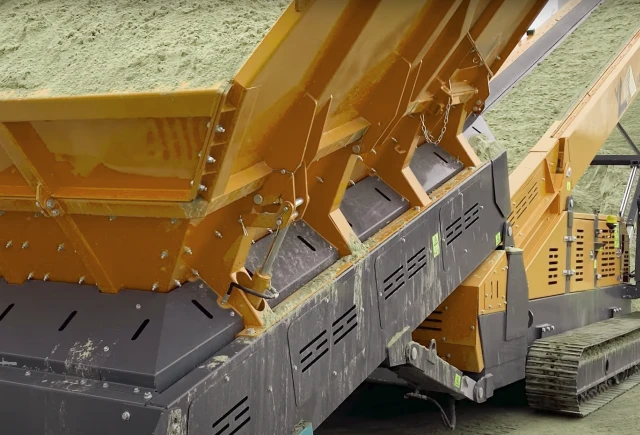

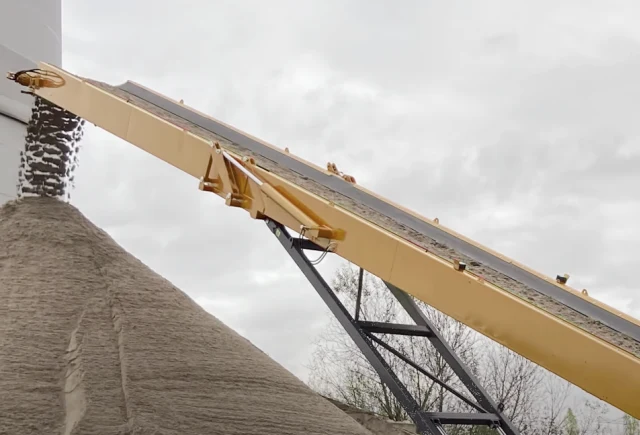

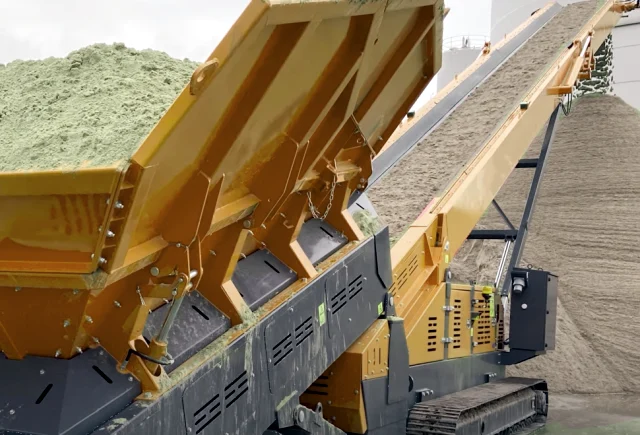

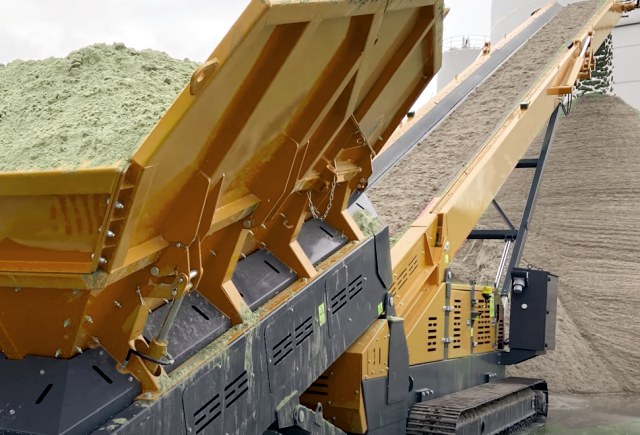

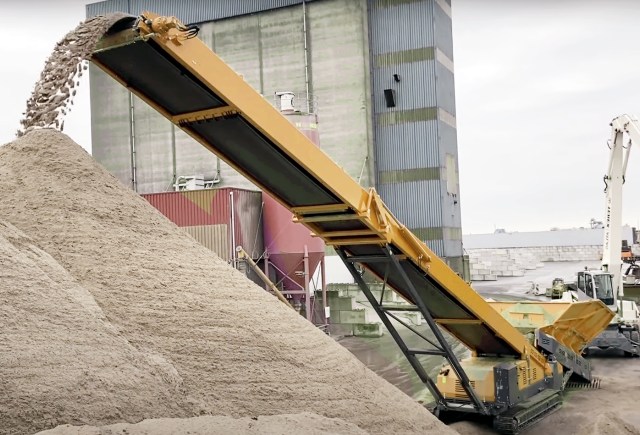

EQUIPMENT GALLERY
