Stacker, Shiploader, Hopper, Bucket Wheel Reclaimer Manufacturer

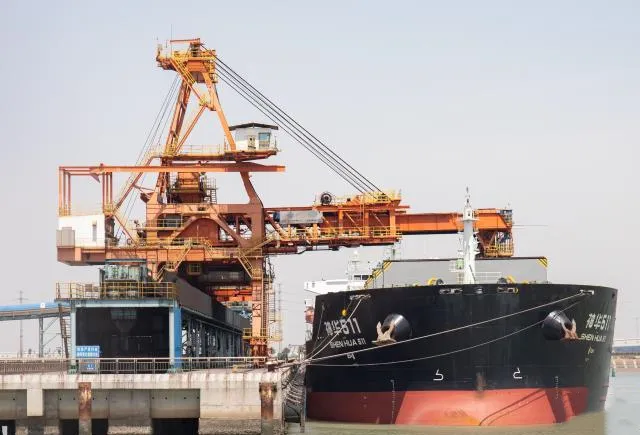

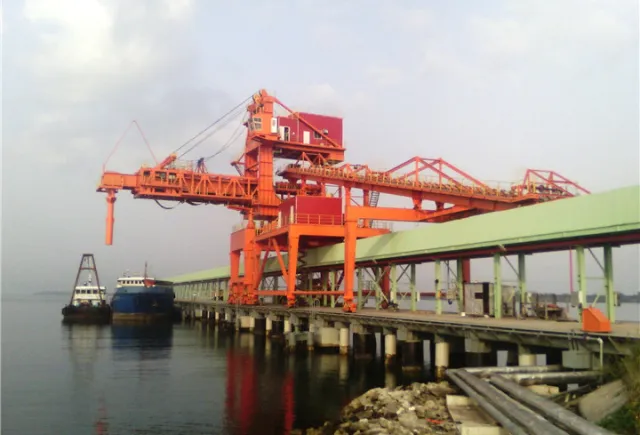

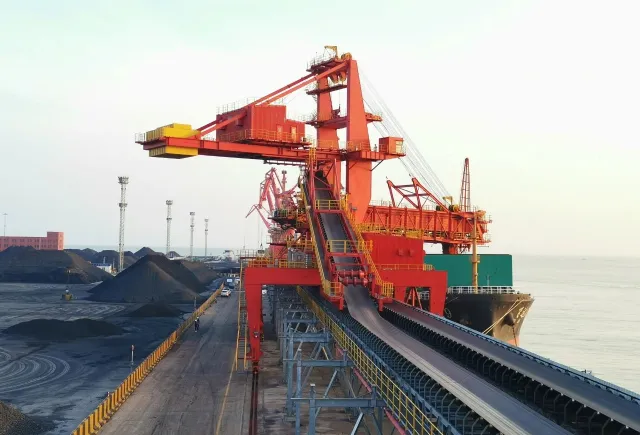

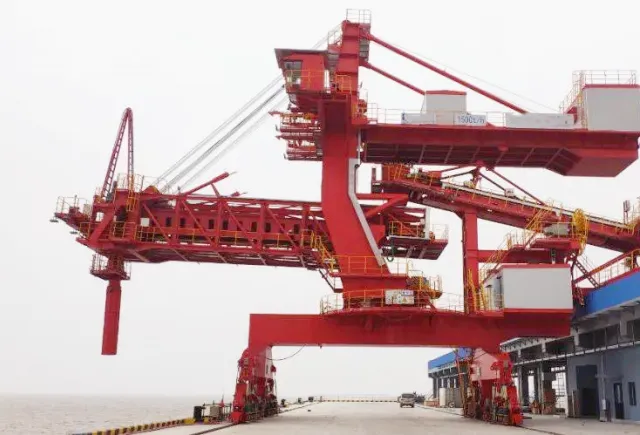

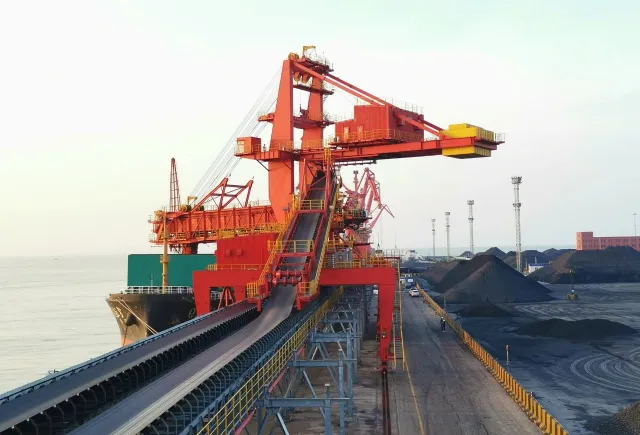

The continuous ship loader is a continuous machine used for bulk cargo loading operations and is connected to the rear conveyor system. This continuous ship loading conveyor takes the cantilever belt conveyor as the main body and consists of the belt conveyor and other working mechanisms (rotation, luffing, telescopic, operation) and the frame.
SKE Industries' continuous bulk ship loader, connected with the rear conveying system, is suitable for ship loading of bulk materials (such as coal, ore, grain, etc.), supports bulk carriers up to 120,000 DWT, with a loading capacity of up to 6000 tons/hour, focusing on efficient and continuous loading operations. It's commonly used in ports and terminals to streamline the loading process, particularly for commodities like:
Rail-mounted ship loaders are mostly used for bulk material loading operations in ports and terminals. Suitable for fast and continuous material transportation with an efficiency of 6000 tons/h.
The slewing ship loader is ideal for compact ports and docks, or tight unloading spaces. Its telescopic and luffing boom design provides the flexibility to accommodate a variety of vessel sizes.
The fixed ship loader is extensively utilized for loading bulk cargoes, such as coal, ore, grain, cement, onto ships at terminals.
| Loading Capacity (t/h) | 1000 | 1500 | 6000 |
| Peak Capacity (t/h) | 1150 | 1800 | 6700 |
| Working Angle (°) | 0-8 | 0-8 | 12-14 |
| Highest Angel (°) | 75 | 64 | 87 |
| Max Wheel Load in Working (t) | 20 | 20 | 44.6 |
| Max Wheel Load off Working (t) | 20 | 20 | 36 |
| Telescopic Length (m) | 10.5 | 17.8 | 19.5 |
| Min. Outreach (m) | 11.5 | 14.5 | 16.5 |
| Rail Space (m) | 14.15 | 10 | 15 |
| Axle Base (m) | 11 | 11 | 14 |
| Belt Width (m) | 1.2 | 1.4 | 2.2 |
| Height of Link Beam (m) | 7.8 | 9.25 | 15 |
| Chute Rotation Speed (r/min) | 0~2 | 0~2 | 0~2 |
| Telescoping Speed (m/min) | 0~5 | 0~5 | 0~6 |
| Belt Speed (m/s) | 2.5 | 2.5 | 4.15 |
| Gantry Travel Speed (m/min) | 0~20 | 0~20 | 0~30 |
| Boom Hoist Time One Way (min) | 6 | 6 | 6 |
| Total Power (Kw) | 240 | 300 | 860 |
