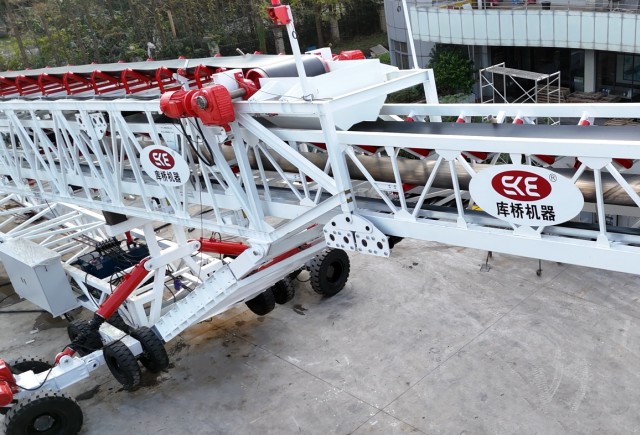

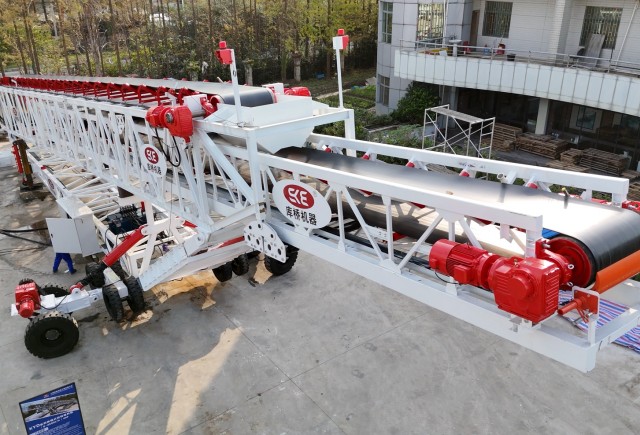

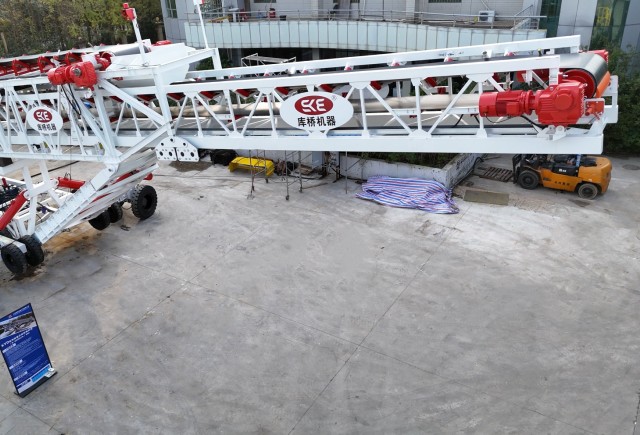

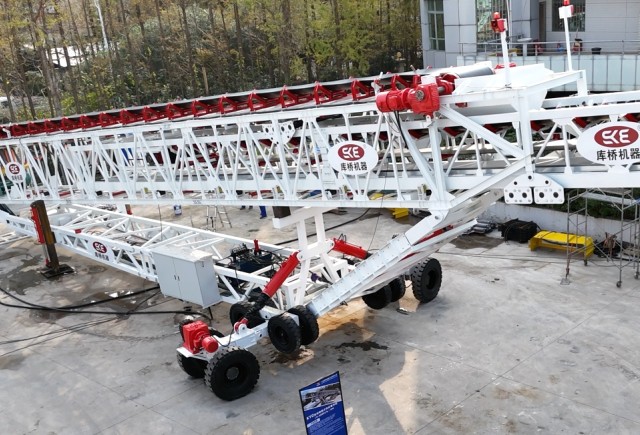

KYD Radial Telescopic Conveyor

KYD radial telescopic belt conveyor is one of the most efficient and effective ways of stockpiling material on the market. The stacker length ranges from 25 to 58m, and the stacking capacity can be up to 4500 t/h.

Application
Video
Features
Gallery
Datasheet
Case Studies

APPLICATION

It is mainly used in occasions where locations of loading and reclaiming changing frequently, such as ports, docks, stations, coal yards, warehouses, construction sites, gravel yards, farms, etc.

Stockpiling from secondary crushers and screens.
Stockpiling crushed stone, sand and gravel, mineral ores.
Stockpiling construction and demolition waste, topsoil, coal, fertilizer, wood chips, grain etc.
Stockpiling ores in a heap leaching plant.
Receiving crushed material and stockpiling safely over a quarry face/ bench.
Loading materials directly to vessels.
Loading materials directly to trucks or rail wagons.
Linking conveyors or processing machines.

VIDEO

FEATURES

Proven best method of stockpiling in the industry for maintaining material quality.
Up to 30% more capacity on same footprint compared to conventional stackers.
Greatly reduces segregation, degradation, compaction and contamination when stockpiling.
Provides a higher quality product at a lower stockpiling cost per tonne.
Eliminates need for wheel loaders to build stockpiles: reduced labor and maintenance costs.
Loading rates up to 4,500TPH.
Fully extended lengths up to 58 meters (190ft).
Eliminate double handling of material.

GALLERY

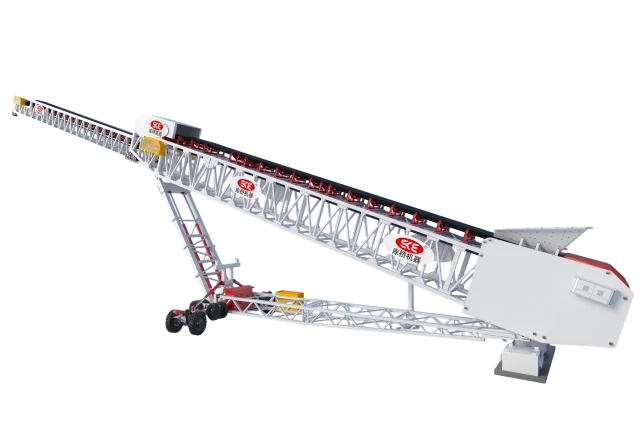

radial telescopic stacker for coal stockpiling

DATASHEET

The stacking capacity is related to the material size and bulk density. The table data is for reference only. We just list some models of KYD radial telescopic stackers. For more models and stockpiling volumes, please consult an engineer.

Model	Conveyor Length	Belt Width	Max. Capacity	Discharging Height	Piling Volume (120°)	Piling Volume (270°)
KYD1025	25m	1000	850t/h	10.7m	5847m³	11747m³
KYD1025	82ft	39”	850t/h	35ft	5847m³	11747m³
KYD1032	32m	1000	850t/h	12.9m	10591m³	21304m³
KYD1032	105ft	39”	850t/h	42ft	10591m³	21304m³
KYD1042	42m	1000mm	1000t/h	16m	21962m³	45041m³
KYD1042	137ft.8”	39”	1000t/h	52ft.5”	21962m³	45041m³
KYD1051	51m	1000mm	1000t/h	18.8m	36456m³	74031m³
KYD1051	167ft.3”	39”	1000t/h	61.ft.7”	36456m³	74031m³
KYD1058	58m	1000mm	1000t/h	21m	51777m³	106063m³
KYD1058	190ft.3”	39”	1000t/h	68ft.9”	51777m³	106063m³
KYD1062	62m	1000mm	1000t/h	22.2m	61583m³	126355m³
KYD1062	203ft.4”	39”	1000t/h	72ft.8”	61583m³	126355m³
KYD1225	25m	1200	1250t/h	10.7	5847m³	11747m³
KYD1225	82ft	47”	1250t/h	35ft	5847m³	11747m³
KYD1232	32m	1200	1250t/h	12.9	10591m³	21304m³
KYD1232	105ft	47”	1250t/h	42ft	10591m³	21304m³
KYD1242	42m	1200mm	1600t/h	16m	21962m³	45041m³
KYD1242	137ft.8”	47”	1600t/h	52ft.5”	21962m³	45041m³
KYD1251	51m	1200mm	1600t/h	18.8m	36456m³	74031m³
KYD1251	167ft.3”	47”	1600t/h	61.ft.7”	36456m³	74031m³
KYD1258	58m	1200mm	1600t/h	21m	51777m³	106063m³
KYD1258	190ft.3”	47”	1600t/h	68ft.9”	51777m³	106063m³
KYD1262	62m	1200mm	1600t/h	22.2m	61583m³	126355m³
KYD1262	203ft.4”	47”	1600t/h	72ft.8”	61583m³	126355m³
KYD1442	42m	1400mm	3200t/h	16m	21962m³	45041m³
KYD1442	137ft.8”	55”	3200t/h	52ft.5”	21962m³	45041m³
KYD1451	51m	1400mm	3200t/h	18.8m	36456m³	74031m³
KYD1451	167ft.3”	55”	3200t/h	61.ft.7”	36456m³	74031m³
KYD1458	58m	1400mm	3200t/h	21m	51777m³	106063m³
KYD1458	190ft.3”	55”	3200t/h	68ft.9”	51777m³	106063m³
KYD1462	62m	1400mm	3200t/h	22.2m	61583m³	126355m³
KYD1462	203ft.4”	55”	3200t/h	72ft.8”	61583m³	126355m³
KYD1642	42m	1600mm	4500t/h	16m	21962m³	45041m³
KYD1642	137ft.8”	63”	4500t/h	52ft.5”	21962m³	45041m³
KYD1651	51m	1600mm	4500t/h	18.8m	36456m³	74031m³
KYD1651	167ft.3”	63”	4500t/h	61.ft.7”	36456m³	74031m³
KYD1658	58m	1600mm	4500t/h	21m	51777m³	106063m³
KYD1658	190ft.3”	63”	4500t/h	68ft.9”	51777m³	106063m³
KYD1662	62m	1600mm	4500t/h	22.2m	61583m³	126355m³
KYD1662	203ft.4”	63”	4500t/h	72ft.8”	61583m³	126355m³
