Stacker, Ship Loader, Eco Hopper, Reclaimer, Truck Unloader, Belt Conveyor Manufacturer

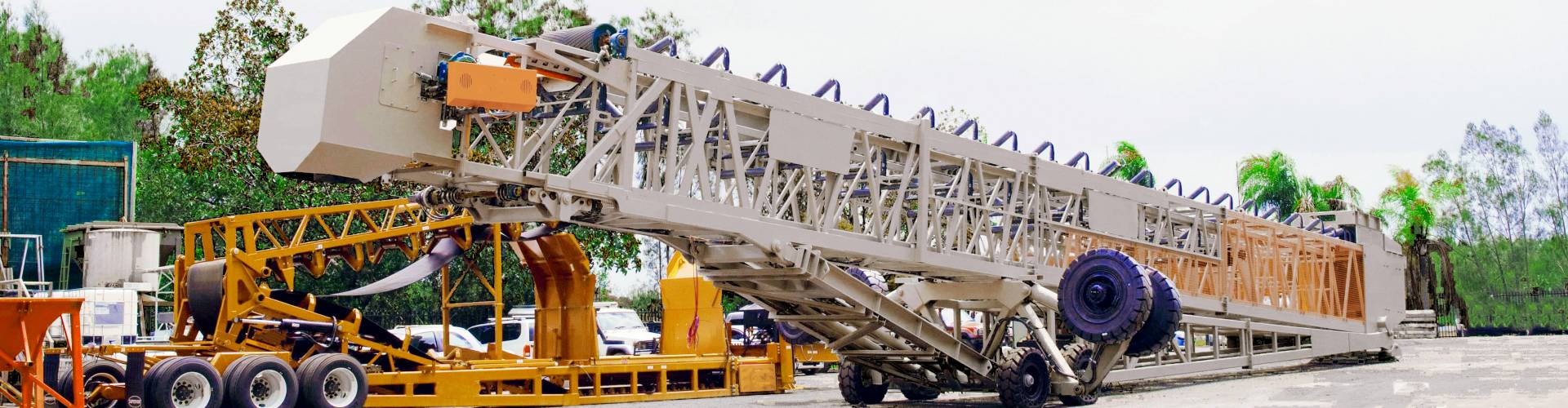

The telescopic stacker is a type of radial stacking telescopic conveyor or telescopic stacker which is widely used in handling bulk materials. It has telescopic unit to extend the working length and improve the stockpiling efficiency. This telescopic radial stacker conveyor can be mounted on wheels and tracks. Its variable height, length, and axle positions allow for layered stockpile construction, which is key to achieving partially and fully desegregated piles.
The stacking volume is 209,300 yd³(160,021 m³). The stockpiling capacity is up to 5000 tons per hour. The stockpile height of this telescopic stacker conveyor is up to 66 ft.
The stacking volume is 142,400 yd³(108872 m³). The stockpiling capacity is up to 4000 tons per hour. The stockpile height of this telescopic stacker conveyor is up to 58 ft.
The stacking volume is 104,300 yd³(79,743 m³). The stockpiling capacity is up to 4000 tons per hour. The stockpile height of this telescopic stacker conveyor is up to 50 ft.
The stacking volume is 76,500 yd³(58,488 m³). The stockpiling capacity is up to 1500 tons per hour. The stockpile height of this telescopic stacker conveyor is up to 43 ft.
The stacking volume is 69,300 yd³(52,983 m³). The stockpiling capacity is up to 1500 tons per hour. The stockpile height of this telescopic stacker conveyor is up to 43 ft.
The stacking volume is 49,200 yd³ (37,616 m³). The stockpiling capacity is up to 1500 tons per hour. The stockpile height of this Telescopic Stacker conveyor is up to 39 ft.
Radial Windrow Stacking, In-line Windrow Stacking, Radial Conical Stacking, Flat Top Stacking and so on.
You can use these telescopic stockpilers to build the different high-quality stockyard.
These fixed radial stacking conveyors are stationary systems ideal for operations with consistent stacking needs and permanent installations for mining and quarrying projects.
Portable Telescopic Radial Stackers are equipped with wheels or tracks for easy relocation. These portable radial stacking conveyors are perfect for temporary sites or dynamic stacking requirements.
When it comes to mobile conveying solutions, we are one of your best choices. We provide various types of mobile bulk material handling solutions including stacking, reclaiming, loading and unloading, etc.
More Solutions
| Feature | Telescopic Radial Stacker | Radial Stacker |
| Reach | Telescoping feature extends reach significantly | Limited to fixed length |
| Mobility | High (in portable models) | Moderate |
| Stockpile Size | Larger and more uniform | Smaller and less precise |
| Advanced Features | Automation, dust control | Basic |
To operations where segregation is an issue, Telescopic Radial StackerConveyors prevent deduct penalties and save costs with restoring in-spec material.
Our automation fills out the back of a stockpile, resulting in 30% more material on the same footprint.
Designed in-house – which means faster support when you need it – our Automation is easy to set up and simple to operate.
A heavy-duty design means we’ve got a deeper truss, a robust undercarriage, and more cross bracing.
What is a Telescopic Radial Stacker conveyor?
A Telescopic Radial Stacker conveyor is a radial telescoping conveyor system used for efficient stockpiling of bulk materials.
What industries use Telescopic Radial Stacker conveyors?
Industries like mining, construction, agriculture, and ports rely on Telescopic Radial Stacker for material handling.
How does a Telescopic Radial Stacker differ from a radial stacker?
Telescopic Radial Stacker offer telescoping functionality for larger, more precise stockpiles, whereas radial stackers rely on a fixed conveyor length.
What are the key benefits of Telescopic Radial Stacker conveyors?
Enhanced efficiency, reduced segregation, environmental benefits, and cost savings.
What maintenance does a Telescopic Radial Stacker require?
Regular inspections, belt maintenance, and system calibration are essential for optimal performance.
Are Telescopic Radial Stacker environmentally friendly?
Yes, they include dust suppression systems and energy-efficient features to reduce environmental impact.
