Stacker, Shiploader, Hopper, Bucket Wheel Reclaimer Manufacturer
Reclaimer is a kind of equipment used to reclaim bulk materials from the stockpile and transport them to the subsequent process. It is widely used in coal, power, mining, cement, steel, port and other industries, and can handle bulk materials such as coal, ore, limestone, cement clinker, sand and gravel, grain, etc. SKE Industries can offer scraper reclaimer, chain bucket reclaimer, and bucket wheel reclaimer.

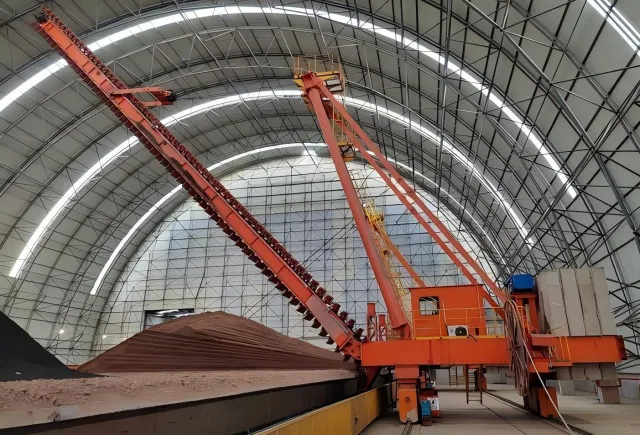

A cantilevered scraper reclaimer is a highly efficient bulk material handling machine designed for continuous reclaiming of materials from medium-sized stockpiles, with a scraper mechanism supported on one side.

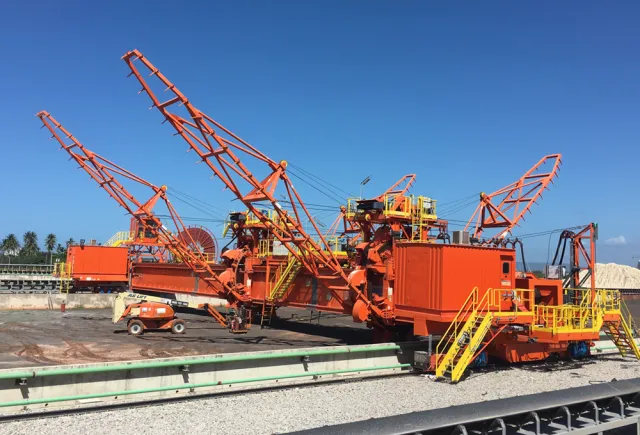

The bridge-type bucket wheel reclaimer is a continuous reclaiming machine, mainly used for wide-span, large-capacity stockyards. It adopts bucket wheel to reclaim materials, which can realize automatic reclaiming.

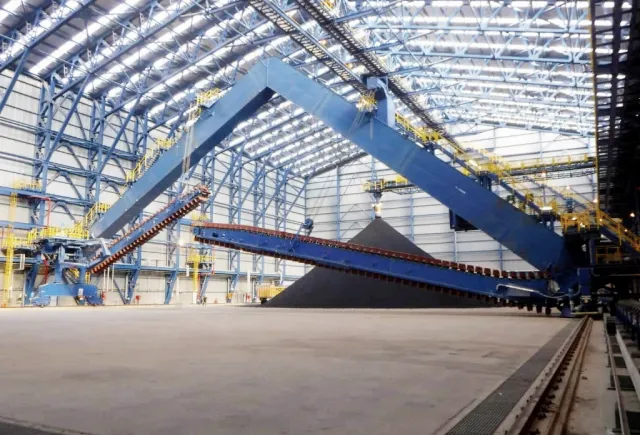

The portal scraper reclaimer is a highly efficient, automated continuous reclaiming equipment suitable for long strip stockyards and is widely used in cement, steel, coal, port and other industries.

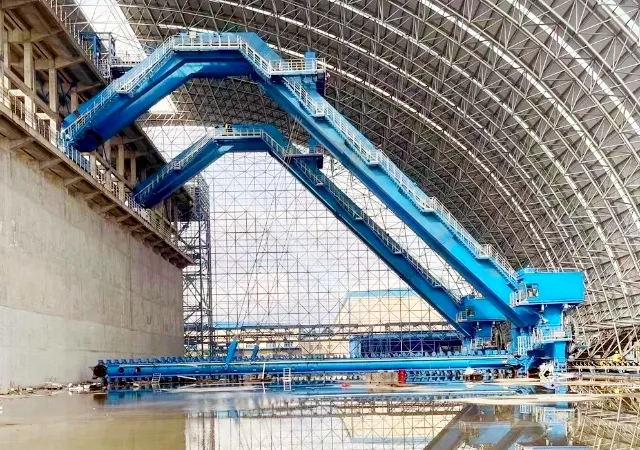

Semi-portal scraper reclaimer is usually applied in pairs at the stockyard which are divided along in two parts. The stockyard can store different materials in different categories.

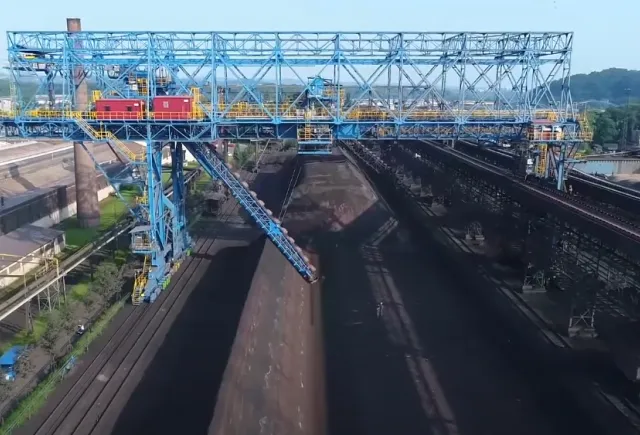

The gantry chain bucket reclaimer is used to reclaim materials from the homogenized material pile and transfer the materials to the belt conveyor.
| Reclaimer Type | Working Principle | Reclaiming Capacity (TPH) | Advantages |
| Bucket Wheel Reclaimer | Rotating bucket wheel scoops material onto a conveyor | 500-10000 | High efficiency, large capacity, automated operation |
| Cantilever Scraper Reclaimer | Single-arm scraper reclaims material from one side | 200-2000 | Space-saving design, low maintenance |
| Bridge Bucket Wheel Reclaimer | Bucket wheel mounted on a bridge structure | 1000-10000 | High capacity, automated blending |
| Portal & Semi-Portal Scraper Reclaimer | Scraper chain mounted on a portal frame | 500-5000 | Large-scale reclaiming, suitable for wide stockpiles |
| Link Chain Bucket Reclaimer | Bucket mounted on link chains | 200-2000 | Stable and uniform material handling |
Designed to handle large volumes of bulk materials with minimal human intervention.
Equipped with PLC/DCS systems, allowing remote and automated operation.
Available in different configurations to suit stockpile sizes and material characteristics.
Provides steady and controlled material flow, optimizing downstream processing.
Designed with efficient power consumption and reduced wear-and-tear components for longevity.
